Bitelligen delivers precision sectioning technologies for researchers.

Committed to the research of slice quality, the BHTZ R&D team is striving to provide perfect slicing technology for scientific researchers.

To meet the diverse needs of neuroscience, neurochemistry, physiology, histochemistry, histopathology, botany (horticultural science, plant pathology), and other fields that require the use of tissue sections for research, our company's R&D team has developed a series of related products for researchers to choose from.

For more product information, please feel free to contact our company. TEL：188 8888 8888 Wechat： 188 8888 8888

We also offer product customization based on actual needs. Your inquiries and communications are welcome.

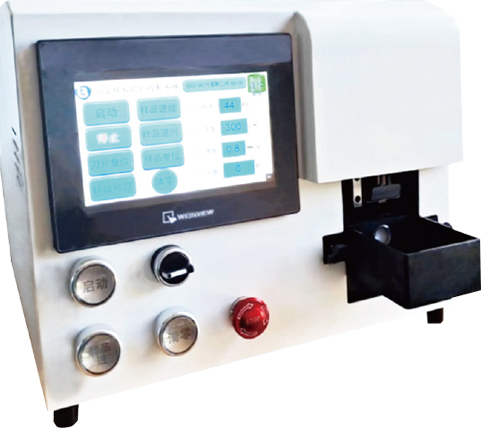

small Vibratome B-S-1018

small Vibratome B-S-1018

A high-quality tissue slicer for animal and plant specimens, featuring simple operation and excellent craftsmanship. It is suitable for cutting fixed animal tissues and fresh plant tissues, and is also capable of slicing animal brain tissues. This equipment meets the stringent requirements for slice quality in three-dimensional reconstruction in the field of neuroscience. It can be widely applied in neuroscience, neurochemistry, physiology, histochemistry, histopathology, botany (horticultural science, plant pathology), and other research fields that require tissue sectioning.

Product Features and Specifications

roduct Features and Specifications

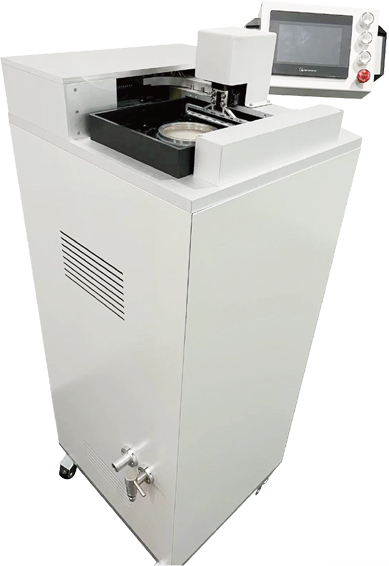

Large Vibratome B-B-1095

This slicer has been developed for slicing monkey brains and other large fresh tissue samples. It is suitable for use in various scenarios requiring tissue sectioning, such as neuroscience, physiology, pharmacology, toxicology, and more. The slicer supports product customization and can meet the slicing needs of multiple sample sizes according to requirements.

Product Features and Specifications

Product Features and Specifications
Large Vibratome B-B-1095

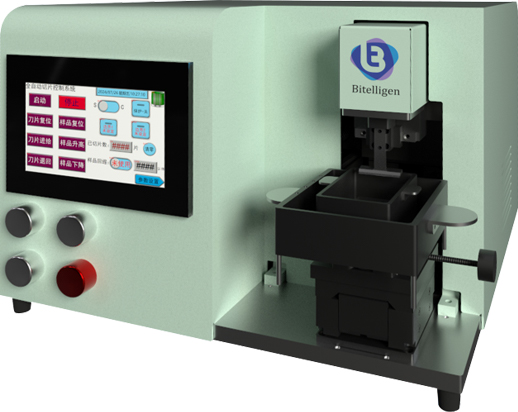

Horizontal Vibrating Microtome B-S-1020H

Horizontal Vibrating Microtome B-S-1020H

A high-quality tissue slicing device for animals and plants that is simple to operate and features excellent craftsmanship
This device excels in the slicing of high-activity fresh animal tissue samples for electrophysiological research and other fields. It requires no freezing or embedding of samples, thereby maximizing cell viability. The high-precision blade positioning ensures that the slicing surface is smooth and the thickness is uniform, meeting the stringent requirements for slice quality needed for three-dimensional reconstruction in neurology. This device can also be applied in neuroscience, neurochemistry, physiology, histochemistry, histopathology, botany (including horticultural science and plant pathology), and other areas that require tissue sectioning for research.

Product Features and Specifications

Product Features and Specifications

Application Examples

Spontaneous Fluorescence Observation in Mouse Renal Cortex (70μm Section, 400x Magnification)

Spontaneous Fluorescence Observation in Mouse Renal Cortex (70μm Section, 400x Magnification)

Spontaneous Fluorescence Observation in Mouse Renal Cortex (70μm Section, 400x Magnification)

Spontaneous Fluorescence Observation in Mouse Renal Cortex (70μm Section, 400x Magnification)

Spontaneous Fluorescence Observation in Mouse Renal Cortex (70μm Section, 400x Magnification)

Technical Features and Specifications

Small Vibratome B-S-1018

  • Sample tube features a high-precision movable sealing design, preventing buffer overflow.

  • Front-loading sample design ensures assembly accuracy while simplifying the sample mounting process.

  • 7-inch LCD touch screen, user-friendly interface, simple and easy to operate.

  • High-precision vibrating head ensures smooth and flat slicing surfaces with uniform thickness.

  • Maximum sample length 70MM, meets the slicing requirements for extra-long samples.

  • Easy to operate, Sample chamber coated with a black oxide layer for easier slicing observation and section retrieval.

  • • Vibration frequency: 0-55Hz, adjustable
  • • Slice thickness: 15-2000μm, adjustable
  • • Return speed: 16mm/s
  • • Maximum sample length: 70mm
  • • Vibration amplitude: 2mm
  • • Slicing speed: 0.1-5mm/s, adjustable
  • • Sample tube inner diameter: 18mm
  • • Slicing mode: Single slice mode / Continuous mode
  • • Sample chamber size: 126mm x 90mm x 43mm, 200ml
  • • Overall dimensions: 465mm x 384mm x 310mm

Large Vibrating Microtome B-B-1095

  • Extra-large sample tube and extra-long blade, capable of meeting the slicing requirements for monkey brain samples.

  • Top-loading sample design with horizontal slicing, making it easier to observe the slicing process.

  • Independent touchscreen operation for a more intuitive and user-friendly experience.

  • Equipped with a built-in drain port for easier removal of slicing solutions.

  • Flexible slicing speed and vibration frequency to meet the slicing requirements of different samples.

  • • Maximum sample diameter: 110mm-200mm (custom sizes supported)
  • • Vibration frequency: 0-40Hz, adjustable
  • • Slicing speed: 0-5mm/s, adjustable
  • • Power supply: 220V/AC 50Hz
  • • Maximum sample height: 110mm-200mm (custom sizes supported)
  • • Slice thickness: 50-2000μm, adjustable
  • • Slicing mode: Single slice / Continuous mode
  • • Blade type: Long blade

Horizontal Vibrating Microtome B-S-1020H

  • High-precision sample advancing mechanism, ensuring uniform thickness for fully automatic continuous slicing.

  • Sample retraction setting added, ensuring the blade does not contact and damage the sample during slicing.

  • Larger sample size capacity: Equipped with an enlarged large-volume sample chamber, supports slicing of samples up to 45×35×20 without worrying about sample placement issues.

  • 7-inch intelligent LCD touch screen, user-friendly interface, simple and easy to operate.

  • High-precision vibrating head, allowing free adjustment of slicing frequency from 1 to 85Hz, ensuring smooth slicing surfaces and uniform thickness for various sample types.

  • Unique sample chamber with full black oxide coating, equipped with dedicated illumination, making free-floating slices clearly visible for easier observation and retrieval.

  • Adjustable slicing range, significantly reducing idle running time, making experimental operations more efficient.

  • Added ice bath tray for more stable temperature control of the sample.

  • • Slice thickness: 1-2000μm, adjustable in 1μm increments
  • • Sample vertical stroke: 20mm
  • • Slicing frequency: 1-85Hz, adjustable in 1Hz increments
  • • Maximum sample size: Length x Width x Height: 45 x 35 x 20mm
  • • Slicing speed: 0.01-10 mm/s, adjustable in 0.01 mm/s increments
  • • Slicing range: 0.1-45mm (customizable)
  • • Sample retraction: 0-100μm, adjustable in 1μm increments (can be adjusted or disabled)
  • • Amplitude: 2mm
  • • Return speed: 0.1-10 mm/s, adjustable in 0.1 mm/s increments
  • • Operates under physiological conditions: Removable ice bath tray and buffer tray ensure slicing under physiological conditions
